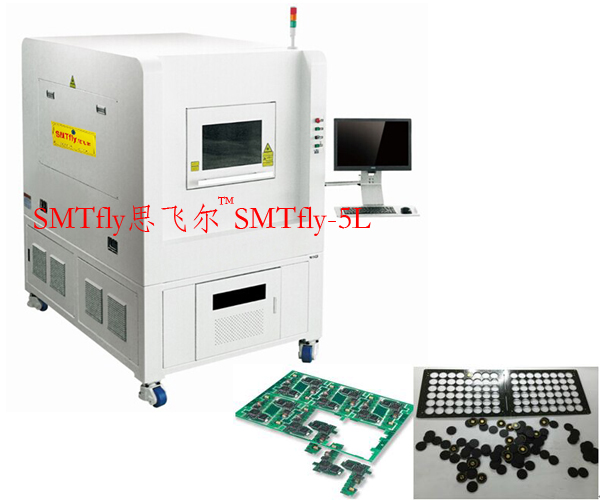

PCB Depaneling Machine with UV Laser from China,SMTfly-5L

Product description: PCB Depaneling Machine with UV Laser from China,SMTfly-5L
INQUIRY

PCB Depaneling Machine with UV Laser from China,SMTfly-5L Features:
More quick and easy, shorten the delivery time;
High quality 、no distortion、surface clean& uniformity;
Gathering the CNC tech、laser tech、software tech…High accuracy、High speed

Power pcb separator

PCB Depaneling Machine with UV Laser from China,SMTfly-5LDescription:
Neat and smooth edge, no burr or overflow
Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.
Laser wavelength: 355nm
Rated power: 10W/12W/15W/18W@30KHz
Galvanometer working field Per One Process: 40 × 40mm
Power consumption for the hole machine: 2KW

Power pcb separator

Cutting Application:

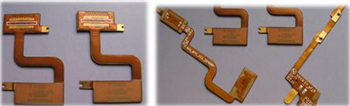

FPC and some relative materials;
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.

PCB Depaneling Machine with UV Laser from China,SMTfly-5LSpecification:
Laser: Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength: 355nm
Laser Power: 10W/12W/15W/18W@30KHz
Positioning Precision of Worktable of Linear Motor: ±2μm
Repetition Precision of Worktable of Linear Motor: ±1μm
Effective Working Field: 400mmX300mm（Customizable）
Laser Scanning Speed: 2500mm/s (max)
Galvanometer Working Field Per One Process: 40mmх40mm

Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 15 years experience
