  • PCBA Routing Equipment,SMTfly-F02

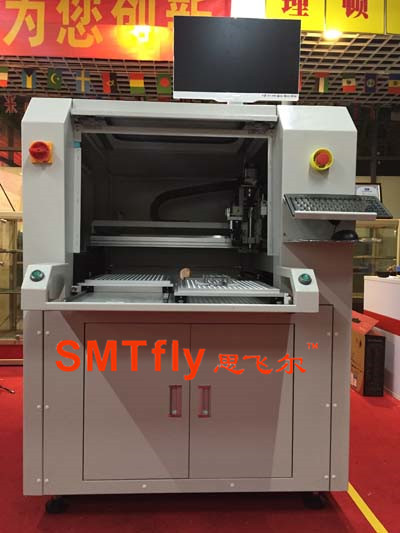

PCBA Routing Equipment,SMTfly-F02

PCBA Routing Equipment,SMTfly-F02

  • Product description: PCBA Routing Equipment,SMTfly-F02
  • INQUIRY

Advantages:

1.  Smooth cutting finish only by router cutting .
2.  There is little distortion on PCB during cutting because using high-frequency spindle motor . It is 1 / 10 of pressing , 1 / 100 of breaking by hand .
3. One-touch program changeover .
4.  Able to cut liner and arc with router machine , diminish the restriction on PCB design .
5.  Read QR code or JIG BIT auto select cutting program , or check accordance between cutting program and JIG .
6. Powerful Dust Collection minimized dust adhesion on PCB .
7. Developed high performance router bit that expanded bit life and relief littering .

8. Cut down PCB cost because need not making V-groove on PCB


Specifications:

Dimensions(W*D*H):
1220mm*1450mm*1420mm
Weight:
550KG
Height offset:
60~110mm
Motor type:
JiaBao series
Positioning repeatability:
0.001mm
Axis working area(max):
680mm*360mm*50mm
PCB fixation:
standard、specialization
PCB loading/unloading:
manual
PCB size (max):
322mm*322mm
PCB thick (max):
5mm
Rigidity fixturing:
standard
Fixturing fixation:
machinery
Power:
400W
Spindle:
50000rpm/min
Protect:
self/wind cooling
Change cutter:
Specialization



why choose us

1. Engineers available to service machinery oversea

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. Mature technique & forerunner to process makes high quality machinery

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines.

Our R&D team continuously upgrade the existing machines to meet the market development trend.

3.Effective customer service

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.

4.One year warranty for the machines except accessories

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients.

We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
