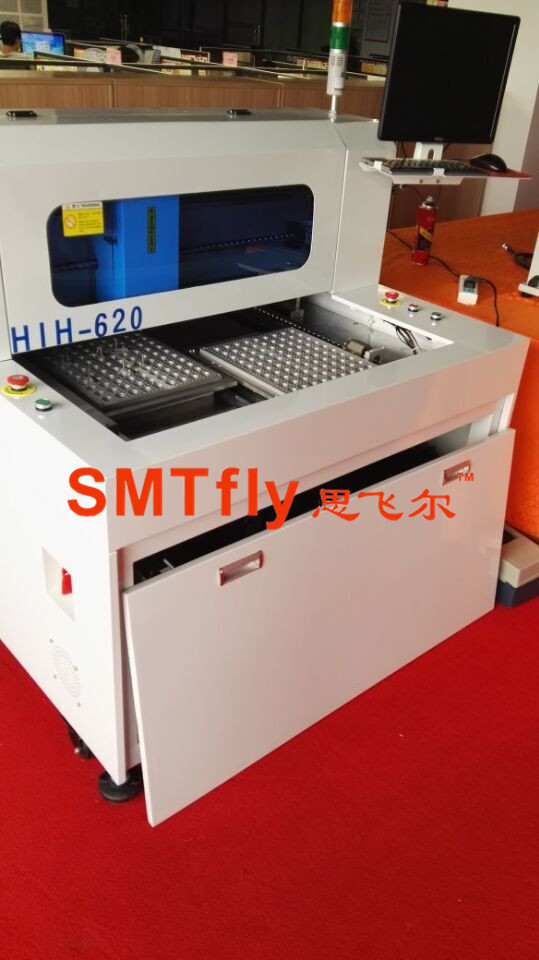

Automatic PCB Router Machine,SMTfly-F01

Product description: Automatic PCB Router Machine,SMTfly-F01
INQUIRY

Automatic PCB Router Machine,SMTfly-F01 Specifications:

Dimensions(WDH):	1220mm1450mm1420mm
Weight:	550KG
Height offset:	60~110mm
Motor type:	JiaBao series
Positioning repeatability:	0.001mm
Axis working area(max):	680mm360mm50mm
PCB fixation:	standard、specialization
PCB loading/unloading:	manual
PCB size (max):	322mm*322mm
PCB thick (max):	5mm
Rigidity fixturing:	standard
Fixturing fixation:	machinery
Power:	400W
Spindle:	50000rpm/min
Protect:	self/wind cooling
Change cutter:	Specialization

PCB Routing Equipment,CW-F01

Advantages:

1. Smooth cutting finish only by router cutting .
2. There is little distortion on PCB during cutting because using high-frequency spindle motor . It is 1 / 10 of pressing , 1 / 100 of breaking by hand .
3. One-touch program changeover .
4. Able to cut liner and arc with router machine , diminish the restriction on PCB design .
5. Read QR code or JIG BIT auto select cutting program , or check accordance between cutting program and JIG .
6. Powerful Dust Collection minimized dust adhesion on PCB .
7. Developed high performance router bit that expanded bit life and relief littering .

8. Cut down PCB cost because need not making V-groove on PCB

If you want to see the video, please click here.
