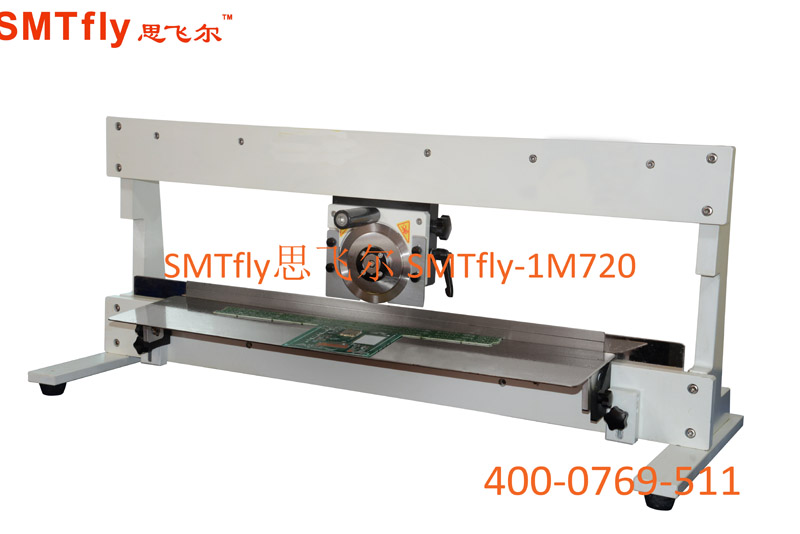

Manual PCB Separator, SMTfly-1M720 Features:

●Round knife, manually cutting against lower linear knife, for reduced stress
●Separate pre-scored PCB assembly without stress on either PCB or component
●Separating speed is adjusted by handwheel
●Handle Intermittent scoring or cut-outs
●Board with projected component can be cut precisely
●Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable.
●Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out .

Manual PCB Separator, SMTfly-1M720 Specification:

Max Cutting Length	No Limit
Blade Length	720mm
PCB Material	FR1, FR4, CEM1, CEM3, MCPCB
Blade Quantity	1 x Circular Blade + 1 x Linear Blade
Cutting Speed	Depends on operator, No Power Required
Machine Weight	45kgs
