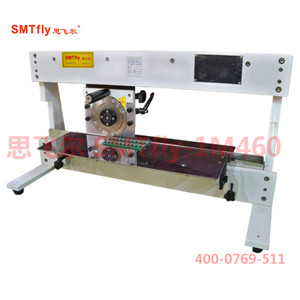

Manual PCBA Depanelizer, SMTfly-1M460 Features:

●Round knife, manually cutting against lower linear knife, for reduced stress
●Separate pre-scored PCB assembly without stress on either PCB or component
●Separating speed is adjusted by handwheel
●Handle Intermittent scoring or cut-outs
●Board with projected component can be cut precisely
●Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable.
●Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out .

Manual PCBA Depanelizer, SMTfly-1M460 Specification:

Max Cutting Length	460mm
Blade Length	480mm
PCB Material	FR1, FR4, CEM1, CEM3, MCPCB
Cutting Speed	Depends on operator, no power required
Machine Weight	30kgs
Blade Material	High Speed Steel
