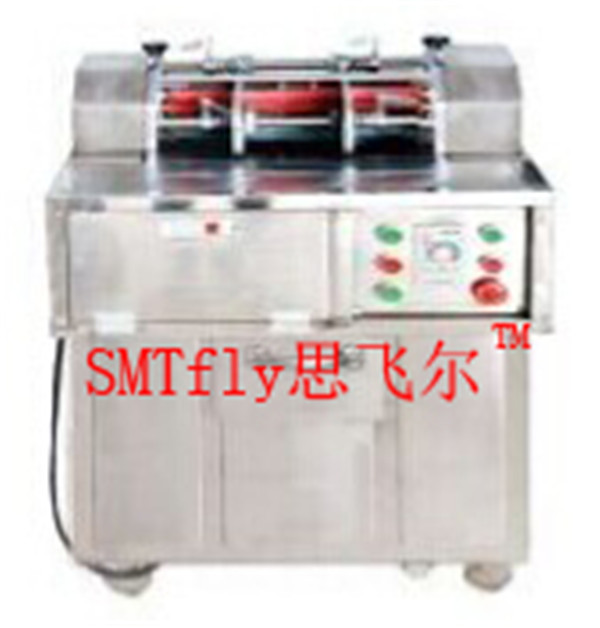

V-Cut Machine SMTfly-480-R Features:
* Cutting Width : 1) Longitudinal 70mm ; 2) Wide : 480mm;
* Thickness : 0.8~3.2 mm;
* Speed : 12mm / min ;
* Total Blades : Upper 10pcs ,Down 10pcs;
V-Cut Machine SMTfly-480-R Details:
Cutting width: 75mm wide vertical 480MM
Thickness: 0.8-3.2 mm
Cardboard each time V≥10 pit (up and down the 10 knives)
Aluminum plate each time V≥ 5 pit (up and down the four knives)
Fiberboard each time V≥ 8 pit (up and down the eight knives)
Speed: 8 m / min.
Spindle Motor: 3KW inverter 3.7KW plastic shaft motor 120W crate motor 60W closed
Mechanical dimensions: 1200 mm x 980 mm x 1400 mm (W x D x H)
Weight: 185KG
Accessories: washer set, V‐CUT knife 4. Shield bearing 10, each one the size of a wrench, a hex key set, blade turret 1.
Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 12 years experience
# Free sharpening for blades within 3 months
# Controlled drawings make strict confidentiality for clients
