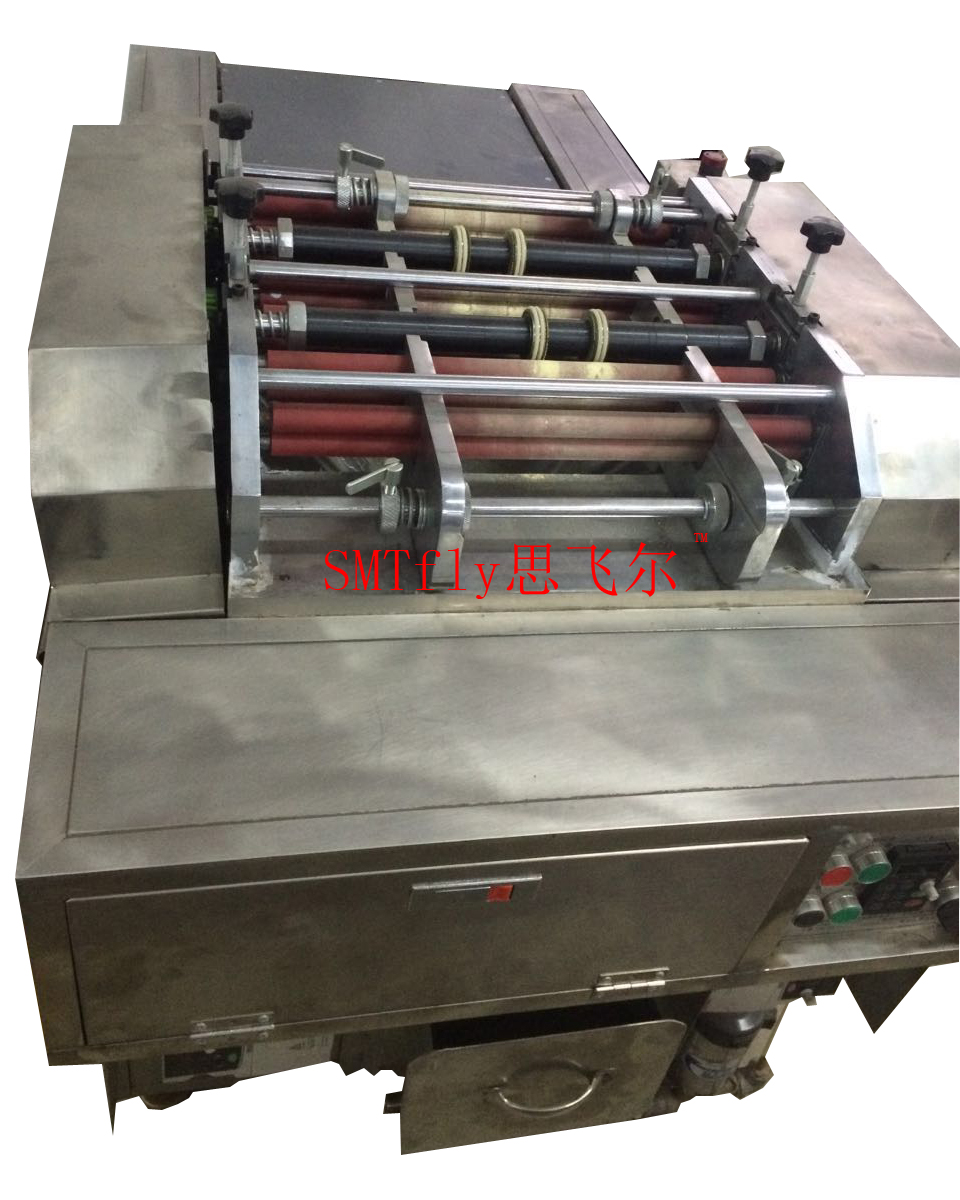

Manual v-cut Machine,V-scoring Machine,SMTfly-48M

Product description: Manual v-cut Machine,V-scoring Machine,SMTfly-48M
INQUIRY

Manual v-cut Machine,V-scoring Machine,SMTfly-48M Features:

*Max PCB size: 380*1200mm
*Thickness: 0.8~3.2 mm;
*Speed : 12mm / min ;
*Total Blades : Upper 8pcs ,Down 8pcs;
*Precision:±0.01mm

Manual v-cut Machine,V-scoring Machine,SMTfly-48M Details:
Thickness: 0.8-3.2 mm
Cardboard each time V≥8 pit (up and down the 8 knives)
Aluminum plate each time V≥ 5 pit (up and down the four knives)
Fiberboard each time V≥ 8 pit (up and down the eight knives)
Speed: 8 m / min.
Spindle Motor: 3KW inverter 3.7KW plastic shaft motor 120W crate motor 60W closed
Mechanical dimensions: 1200 mm x 980 mm x 1400 mm (W x D x H)
Weight: 185KG
Accessories: washer set, V-CUT knife 4. Shield bearing 10, each one the size of a wrench, a hex key set, Blades turret 1

Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 15 years experience
# Free sharpening for blades within 3 months
# Controlled drawings make strict confidentiality for clients
