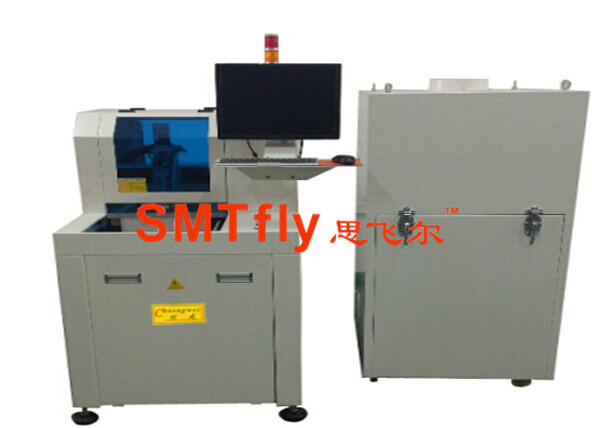

PCB Router Machine Price,SMTfly-F01

Product description: pcb router machine price
INQUIRY

Specifications:

Dimensions(WDH):	1220mm1450mm1420mm
Weight:	550KG
Height offset:	60~110mm
Motor type:	JiaBao series
Positioning repeatability:	0.001mm
Axis working area(max):	680mm360mm50mm
PCB fixation:	standard、specialization
PCB loading/unloading:	manual
PCB size (max):	322mm*322mm
PCB thick (max):	5mm
Rigidity fixturing:	standard
Fixturing fixation:	machinery
Power:	400W
Spindle:	50000rpm/min
Protect:	self/wind cooling
Change cutter:	Specialization

Feature:

1.X10 zoom-in image makes programming easier&increase the accuracy of point setting.

2.Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.

3.AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.

4. Has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting. And routing bit first 2mm cut the first miling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time.

5. CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.
