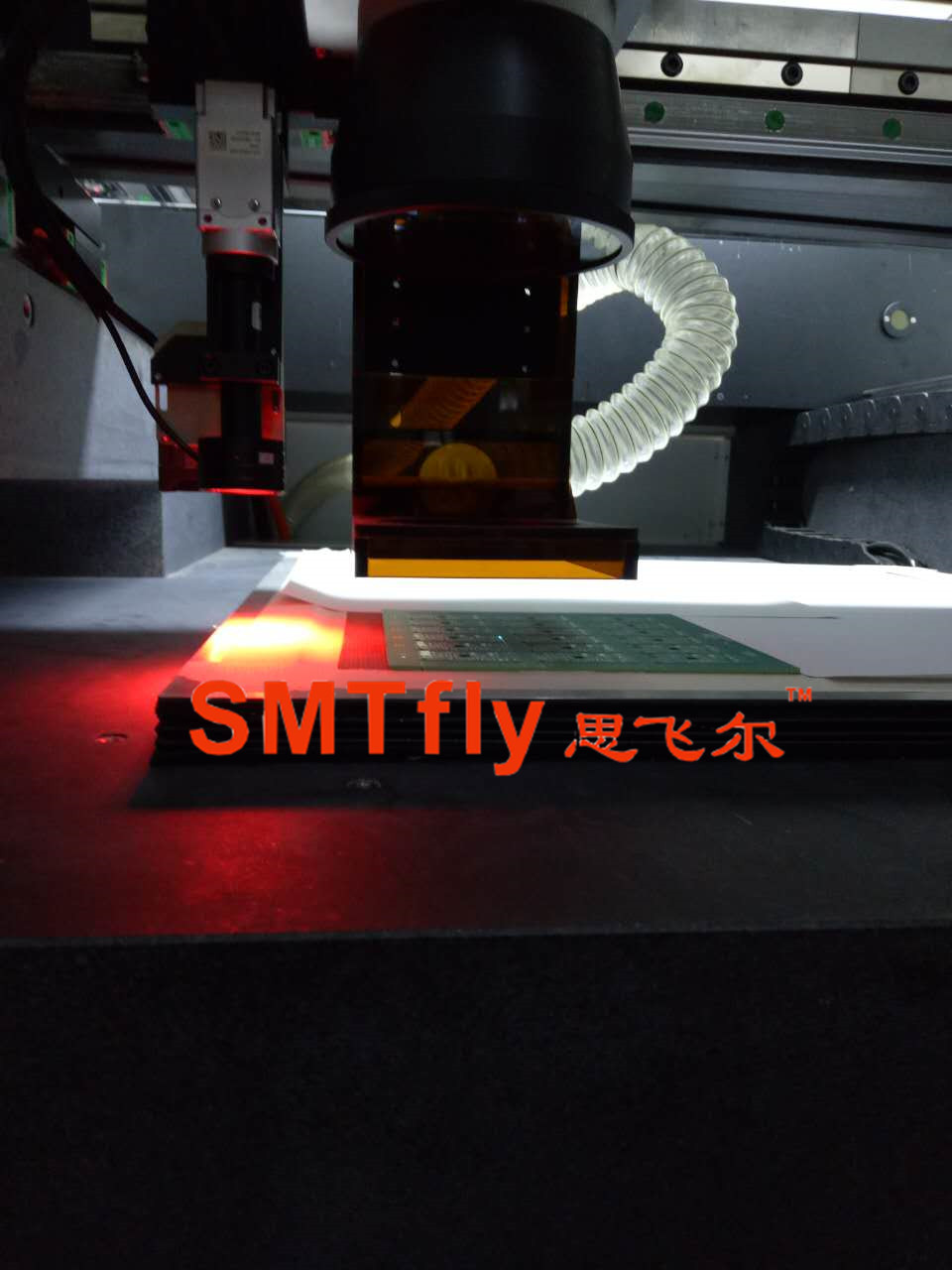

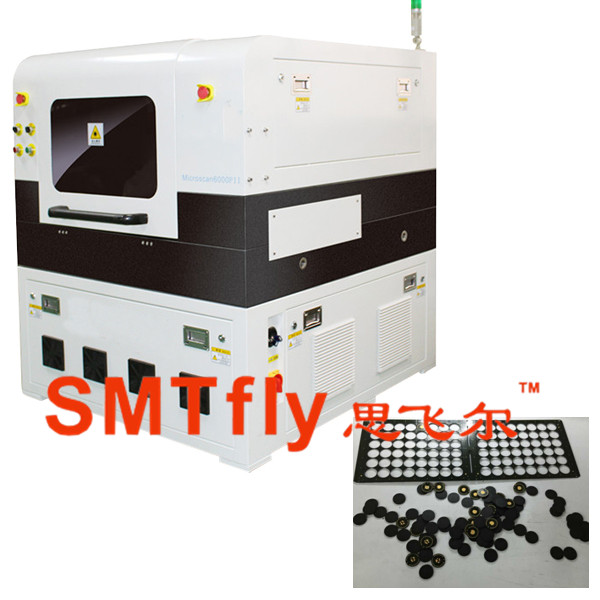

Laser PCB Cutting Machine with 10W Laser Imported from USA,SMTfly-5L

Product description: laser pcb cutting machine with 10W laser imported from USA
INQUIRY

Specification:

Laser:	Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength:	355nm
Laser Power:	10W/12W/15W/18W@30KHz
Positioning Precision of Worktable of Linear Motor:	±2μm
Repetition Precision of Worktable of Linear Motor:	±1μm
Effective Working Field:	460mmX460mm
Laser Scanning Speed:	2500mm/s (max)
Galvanometer Working Field Per One Process:	40mmх40mm

Description:

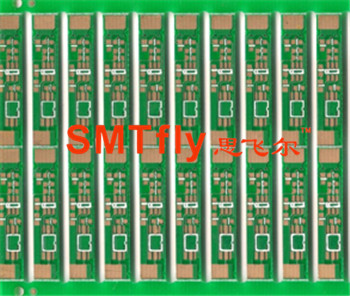

Neat and smooth edge, no burr or overflow
Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.
Laser wavelength: 355nm
Rated power: 10W/12W/15W/18W@30KHz
Galvanometer working field Per One Process: 40 × 40mm
Power consumption for the hole machine: 2KW
