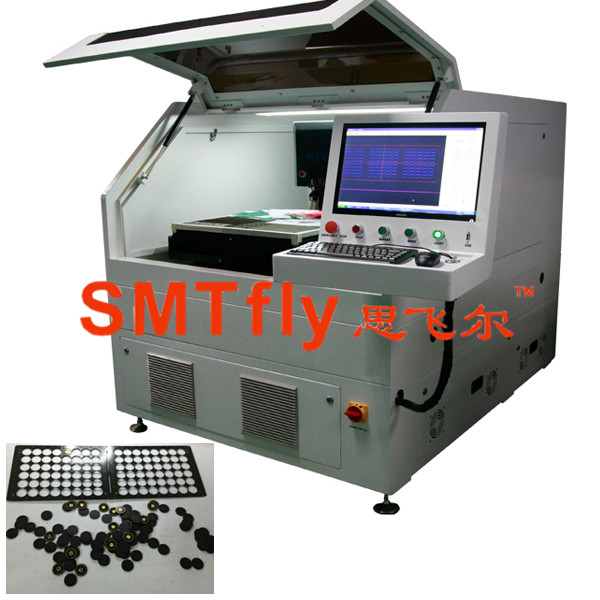

Laser PCB Cutter with 10W Laser Imported from USA,SMTfly-5S

Product description: Laser PCB Cutter with 10W Laser Imported from USA,SMTfly-5S
INQUIRY

Advantages:

High precision CCD automatic positioning, automatic focusing. Fast and accurate

positioning, save time and no worries.
Friendly interface,Simple operation, easy to use, free application; Small size, Save more
space; rigorous security design;
Reduce energy consumption, Cost savings.

Cost‐effective, fast cutting speed, stable performance

Technical Parameters:

Main body of laser:	1480mm1360mm1412 mm
Weight:	1500Kg
Power:	AC220 V
Laser:	355 nm
Laser:	Optowave 10W（US）
Material:	≤1.2 mm
Precisio:	±20 μm
Platfor:	±2 μm
Platform:	±2 μm
Working area:	450*430 mm
Maximum:	3 KW
Vibrating:	CTI（US）
Power:	AC220 V
Diameter:	20±5 μm
Ambient:	20±2 ℃
Ambient:	＜60 %
The Machine:	Marble

Our service:

# Fast delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 14 years experience
# Oversea installation and training is available
